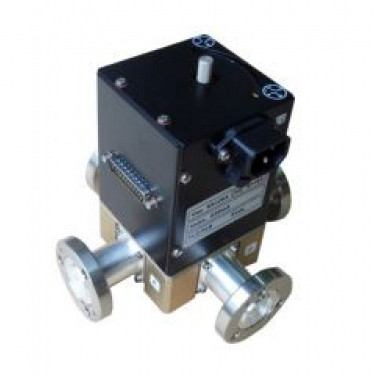

Coaxial Switch With 7/8
Mechanical Characteristics:
- Connections : EIA 7/8
- Overall dimensions [WxDxH][mm.] : 167x167x168
- Temperature range [°C] : -10 ÷ +50
- Weight [kg.] : 2.5
Electrical Characteristics:
- Frequency Range [MHz] : DC to 862
- Insertion Loss [dB] : <0.05
- Input/Output impedance [Ohm] : 50
- Operating Voltage [Vac]: 85÷264 / 47÷63 Hz
- Control voltage [Vdc] : 5, 12 or 24
- Switch-over time[s] : < 1
