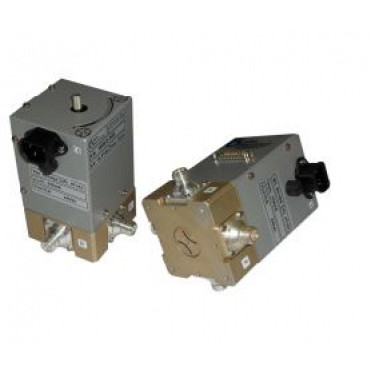

Coaxial Switch With N

Mechanical Characteristics:

      • Connections : N
      • Overall dimensions [WxDxH][mm.] : 125x125x160
      • Temperature range [°C] : -10 ÷ +50
      • Weight [kg.] : 1.7



Electrical Characteristics:

    • Frequency Range [MHz] : DC to 862 MHz
    • Insertion Loss [dB] : <0.05
    • Input/Output impedance [Ohm] : 50
    • Operating Voltage [Vac]: 585+264 / 47+63Hz
    • Control voltage [Vdc] : 5, 12 or 24
    • Switch-over time[s] : < 1
