FM Pallet Amplifier


FMAMP05 - 5W FM Pallet Amplifier

FMAMP05 - 5W FM Pallet Amplifier

Gain: 26dB Input Power: 11dBm Supply Voltage: 48V  Bandwidth: 88-108 MHz Transistor: BLP10H605 NOTE: Pallets are sensitive devices if you do not have sufficien...
FMAMP10 - 10W FM Pallet Amplifier

FMAMP10 - 10W FM Pallet Amplifier

Gain: 26dB Input Power: 14dBm Supply Voltage: 48V  Bandwidth: 88-108 MHz Transistor: BLP10H610 NOTE: Pallets are sensitive devices if you do not have sufficien...
FMAMP20- 20W FM Pallet Amplifier

FMAMP20- 20W FM Pallet Amplifier

Gain: 28dB Input Power: 15dBm Supply Voltage: 48V Bandwidth: 88-108 MHz Transistor: BLF571 • Efficiency: 70% • Class AB • Equipped with an adjustable attenuator to allow adjusting the output p...
FMAMP75- 75W FM Pallet Amplifier

FMAMP75- 75W FM Pallet Amplifier

Gain: 24dB Input Power: 21dBm Supply Voltage: 48V Bandwidth: 88-108 MHz Transistor: BLP05H675XR • Efficiency: 72% • Class AB NOTE: Pallets are sensitive devices if you do not...
FMAMP100 - 100W FM Pallet Amplifier

FMAMP100 - 100W FM Pallet Amplifier

Gain: 26dB Input Power: 24dBm Supply Voltage: 48V Bandwidth: 88-108 MHz Transistor: BLP05H6110XR • Efficiency: 74% • Class AB NOTE: Pallets are sensitive devices if you do no...
FMAMP300- 300W FM Pallet Amplifier

FMAMP300- 300W FM Pallet Amplifier

Gain: 28dB Input Power: 27dBm Supply Voltage: 48V Bandwidth: 88-108 MHz Transistor: BLF183XR •Efficiency: 74% • Class AB NOTE: Pallets are sensitive devices if you do not h...
FMAMP550- 550W FM Pallet Amplifier

FMAMP550- 550W FM Pallet Amplifier

Gain: 18dB Input Power: 39dBm Supply Voltage: 48V Bandwidth: 88-108 MHz Transistor: SD2932 or equivalent NOTE: Pallets are sensitive devices if you do not have sufficient experience please...

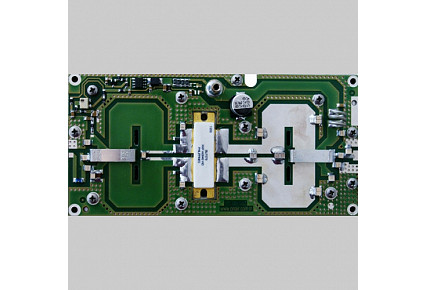

FMAMP650- 650W FM Pallet Amplifier

FMAMP650- 650W FM Pallet Amplifier

Gain: 26dB Input Power: 32dBm Supply Voltage: 46V  Bandwidth: 88-108 MHz Transistor: BLF574 • Class B NOTE: Pallets are sensitive devices if you do no...
FMAMP800- 800W FM Pallet Amplifier

FMAMP800- 800W FM Pallet Amplifier

Gain: 25dB Input Power: 34dBm Supply Voltage: 46V Band width: 88-108 MHz Transistor: BLF578 B Class NOTE: Pallets are sensitive devices if you do not have sufficien...
FMAMP1K- 1KW FM Pallet Amplifier

FMAMP1K- 1KW FM Pallet Amplifier

Gain: 25dB Input Power: 35dBm Supply Voltage: 48V Bandwidth: 88-108 MHz Transistor: BLF178XR NOTE: Pallets are sensitive devices if you do not have sufficient experience please consider a ...
FMAMP1K25 - 1250W FM Pallet Amplifier

FMAMP1K25 - 1250W FM Pallet Amplifier

Gain: 22.5dB Input Power: 37dBm Supply Voltage: 50V Bandwidth: 88-108 MHz Transistor: BLF188XR or MRFE6VP61K25H Efficiency: 75% NOTE: Pallets are sensitive devices if you d...
FMAMP1K5 - 1500W FM Pallet Amplifier

FMAMP1K5 - 1500W FM Pallet Amplifier

Gain: 23dB Input Power: 38dBm Supply Voltage: 50V Bandwidth: 88-108 MHz Transistor: MRF1K50H Efficiency: 79% NOTE: Pallets are sensitive devices if you do not have sufficie...
FMAMP1K5-144 - 1500W 144 Mhz FM Pallet Amplifier

FMAMP1K5-144 - 1500W 144 Mhz FM Pallet Amplifier

Frequency: 144Mhz Gain: 24dB Input Power: 37dBm Supply Voltage: 50V Transistor: MRF1K50H Efficiency: 69% NOTE: Pallets are sensitive devices if you do not have sufficient e...
FMAMP1K8- 1800W FM Pallet Amplifier

FMAMP1K8- 1800W FM Pallet Amplifier

Gain: 24.8dB Input Power: 39dBm Supply Voltage: 50V Bandwidth: 88-108 MHz Transistor: MRFX1K80H Efficiency: 79% NOTE: Pallets are sensitive devices if you do not have suffi...
FMAMP2K - 2KW FM Pallet Amplifier

FMAMP2K - 2KW FM Pallet Amplifier

Gain: 25dB Input Power: 38dBm Supply Voltage: 48V Bandwidth: 88-108 MHz Transistor: 2xBLF178XR Heatsink is included   ...
FMAMP3K - 3KW FM Pallet Amplifier

FMAMP3K - 3KW FM Pallet Amplifier

Gain: 25dB Input Power: 41dBm Supply Voltage: 48V Bandwidth: 88-108 MHz Transistor: 4xBLF578 Heatsink is included ...
FMAMP4K - 4KW FM Pallet Amplifier

FMAMP4K - 4KW FM Pallet Amplifier

Gain: 25dB Input Power: 44dBm Supply Voltage: 48V Bandwidth: 88-108 MHz Transistor: 4xBLF178XR Heatsink is included ...

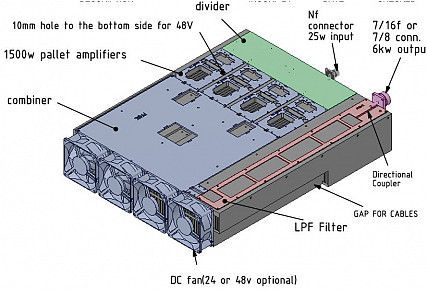

FMAMP5K - 5KW FM Pallet Amplifier

FMAMP5K - 5KW FM Pallet Amplifier

Gain: 25dB Input Power: 44dBm Supply Voltage: 48V  Bandwidth: 88-108 MHz Transistor: 4xMRFE6VP61K25H  Heatsink is included   NOTE: Pa...
FMAMP6K - 6KW FM Pallet Amplifier

FMAMP6K - 6KW FM Pallet Amplifier

Gain: 25dB Input Power: 44dBm Supply Voltage: 48V  Bandwidth: 88-108 MHz Transistor: 4xMRF1K50H Heatsink is included   NOTE: Pallets are sensi...
