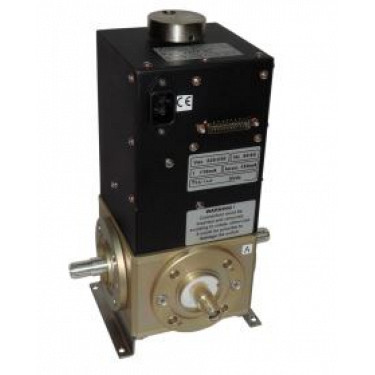

Coaxial Switch With 1-5/8

Mechanical Characteristics:

  • Connections : EIA 1-5/8
  • Overall dimensions [WxDxH][mm.] : 205x205x295
  • Temperature range [°C] : -10 ÷ +50
  • Weight [kg.] : 6.5



Electrical Characteristics:

  • Frequency Range [MHz] : DC to 862
  • Insertion Loss [dB] : <0.05
  • Input/Output impedance [Ohm] : 50
  • Operating Voltage [Vac]: 220÷230 / 50÷60 Hz
  • Control voltage [Vdc] : 5, 12 or 24
  • Switch-over time[s] : < 3.3
