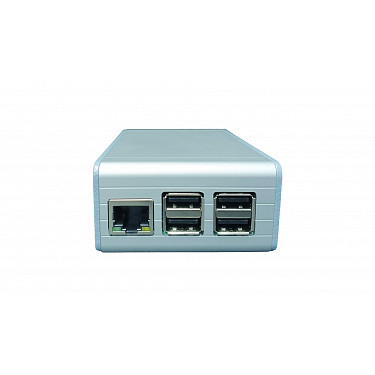

IPAT-22 - IP Audio Transceiver (Streamer and Receiver)

It can work with Shoutcast or Icecast compatible servers. IPAT is fully compatible with ONAIR IPAR-18 audio receiver also.

It comes with a built-in Icecast compatible audio server, and can decode the audio sent from any Icecast compatible audio streamer.

IPAT-22 has a built-in web server and audio server. The built-in web server enables remote controlling and built-in audio server to enable easy re-streaming audio inputs.

With WiFi Hotspot support, you can easily monitor and control IPAT-22.

IPAT-22 uses 2GB of internet per day on average at 192 kbps broadcast quality (192 kbps broadcast quality is used for MP3s with a sampling frequency of 44100)


•   Creates digital OGG/MP3 audio streams at a bit rate that can be set from analog audio inputs.

•   Decodes almost all popular audio streams.

•   Supported network connection methods: HTTP, BRTP, RTP, SIP, raw UDP, raw TCP, Icecast, and Shoutcast.

•   Streaming encryption and distribution methods: Shoutcast, Icecast
•   Easy setup with a standard web browser.
•   Internal Icecast compatible audio server.
•   Remote control over TCP/IP or cloud.
•   3G/4G USB modem support.

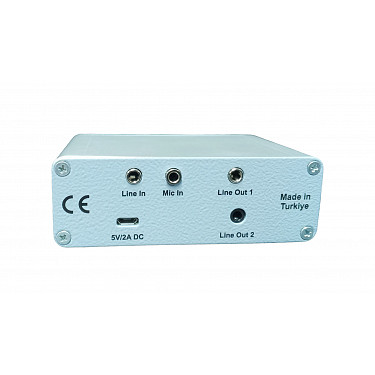

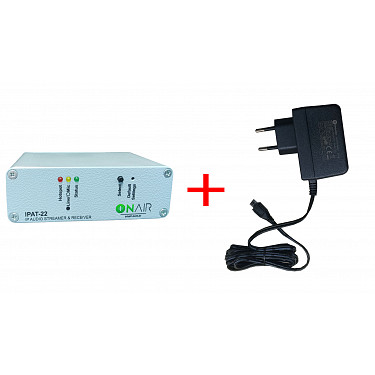

 * Voltage/Current: 5V/2A

 * Power Consumption: 13 W max.

 * Input type: Micro USB


 * Max. 150Mbps WIFI connection
 * 3G/4G USB Modem Support (USB 2.0)
 * 10/100 Mbps Ethernet Connection


 * 2.1 Vrms maximum input voltage (4.2Vrms for balanced input)
 * 2.1 Vrms maximum output voltage
 * 103 dB signal-to-noise ratio(typical) input
 * 106 dB signal-to-noise ratio(typical) output
 * -84 dB THD+N (typical) input
 * -92 dB THD+N (typical) output
 * 10 Hz-70 kHz (-3dB) Frequency response
 * -12 dB to 32 dB input gain
 * 44.1-192 kHz sample rates


IPAT-22 Application:


IPAT-22 Icecast/Shoutcast Usage:



IPAT-22 Streamer/Receiver Usage:
