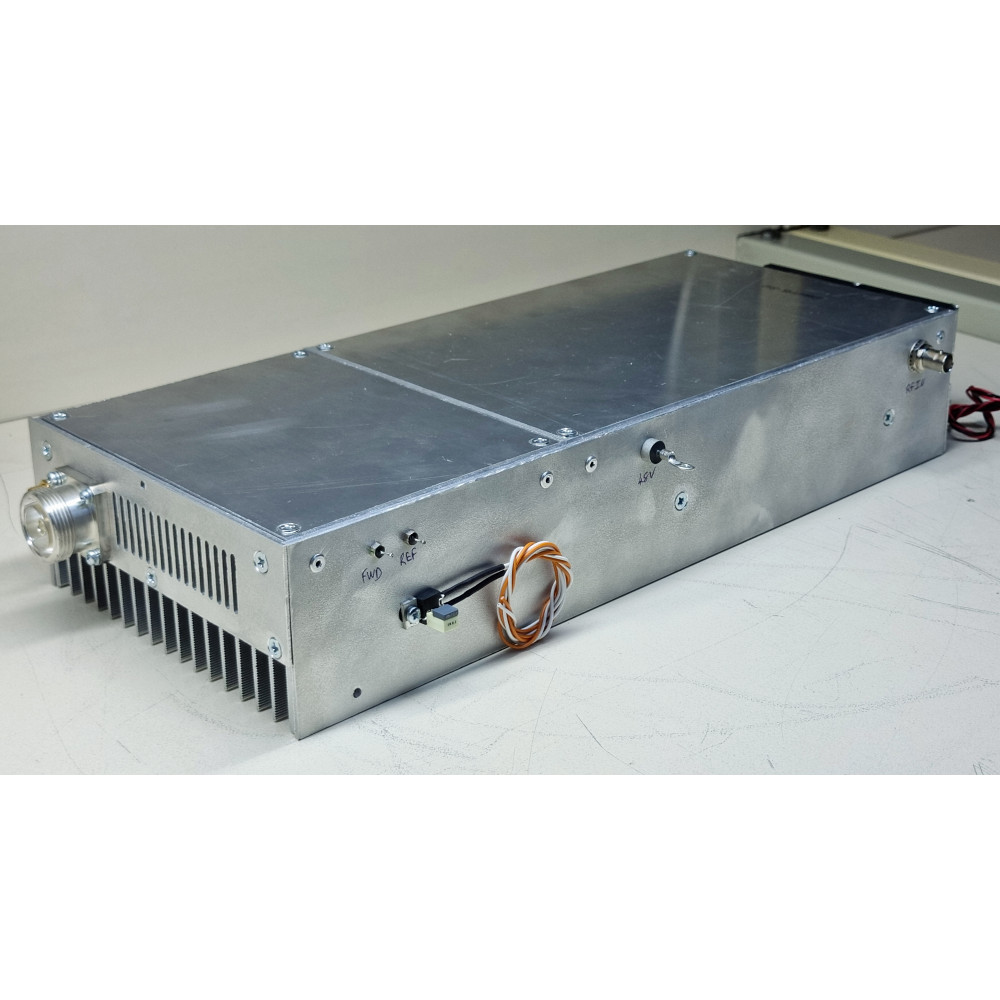

1500 W FM Amplifier – Ready Drop-In Solution for FM Broadcast Modernization

Designed for high-power FM broadcasting applications, this FM Amplifier stands out with high gain, wideband performance, and reliable operation. It delivers efficient power amplification across the 88–108 MHz range and ensures long-term stable use with its integrated heatsink and cooling system.

With a +7 dBm modulator output, the amplifier can deliver up to 1500 W output power, making it a ready drop-in replacement solution for modernizing older FM transmitters that use inefficient MOSFET transistors.

Specifications:

• Gain: 56 dB
• Input Power: 7 dBm
• Supply Voltage: 52 V
• Bandwidth: 88–108 MHz
• Filter: Integrated directional coupler (with DC outputs for forward power and reflected power measurements)
• Heatsink: Included
• Enclosure: Feed-throughs mounted for transistor supply voltage, module powers, forward output power, and reflected power measurements
• Input: BNC female
• Output: 7/16 female
• RF Monitor: SMA female
• Temperature Sensor: Mounted on the heatsink. Powered with 24 V supply. Provides 10 mV/°C output corresponding to temperature changes.
• Fan: 24 VDC fan mounted on the enclosure for reliable cooling

Applications:

• FM broadcast transmitters
• Modernization projects for legacy FM transmitters (efficiency and power upgrade)
• High-power RF amplification systems

Advantages:

This amplifier provides high efficiency and low distortion, ensuring reliable power amplification in FM broadcast systems. Its robust design, integrated cooling solution, and ready-to-use drop-in configuration make it suitable for long-lasting, uninterrupted operation and straightforward integration into modernization projects.

Important Notice:

Pallet amplifiers are sensitive devices. If you lack sufficient experience, consider a fully assembled product instead.
Damage may occur due to:

• Excessive drive power
• Over-voltage supply
• Inadequate cooling or fan usage
• Operating without a proper load

For this reason, no warranty is provided for pallet amplifiers. However, each unit is thoroughly tested and guaranteed to be 100% operational at the time of delivery.
