Features

Mechanical characteristics

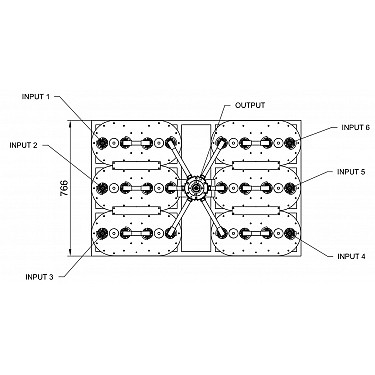

• Input connectors 7/16
• Output connector 1-5/8
• Overall dimensions [WxDxH] [mm.] 766x1188x943
• Weight [kg.] 143
• Temperature range [° C] -10 ÷ +50

Electrical characteristics

• Frequency range [MHz] 87.5 ÷ 108
• Insertion loss by channels [dB] < 0.45
• Return Loss by channel [dB] > 26
• Input/Output Impedance [Ohm] 50
• Min. distance between channels [MHz] 2
• Insulation between channels [dB] > 30
• Maximum channel Input Power [W] 2000
• Maximum Output Power [W] 12000
