6+6kW FM CONSTANT IMPEDANCE COMBINER

Features

Mechanical characteristics

• Input narrowband EIA  7/8" male
• Input broadband EIA 7/8" male
• Output EIA 1 5/8" Female

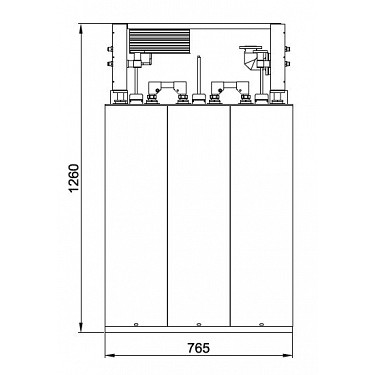

• Overall dimensions [WxDxH] [mm.] 1260x765x509
• Weight [kg.] 90
• Temperature range [° C] -10 ÷ +50

Electrical characteristics

• Frequency range [MHz] 87.5 ÷ 108
• N.B İnsertion Loss [dB] < 0.6
• B.B İnsertion Loss [dB] <0.2
• Min. distance between channels [MHz] 0.8
• Insulation NB>BB [dB] > 40
• Insulation BB>NB [dB] > 40
• Return loss by channels [dB] >26
• Input/Output impedance [Ohm] 50
• Narrow Band Max. Power [W] 6000
• Broad Band Max. Power [W] 6000
• Maximum Output Power [W] 12000
