CFM2-5K+40K/3-DP318

5+40KW FM CONSTANT IMPEDANCE COMBINER (TRIPLE CAVITY)

Features

Mechanical characteristics

  • Input narrowband EIA 7/8" male
  • Input broadband EIA 3 1/8"male
  • Output EIA 3 1/8"

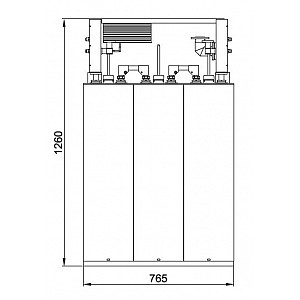

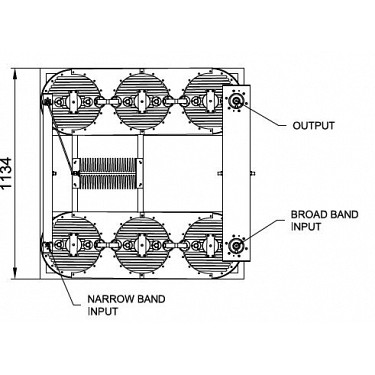

  • Overall dimensions [WxDxH] [mm.] 1155x1134x1263
  • Weight [kg.] 175
  • Temperature range [° C] -10 ÷ +50


Electrical characteristics

  • Frequency range [MHz] 87.5 ÷ 108
  • N.B İnsertion Loss [dB] < 0.5
  • B.B İnsertion Loss [dB] <0.2
  • Min. distance between channels [MHz] 0.8
  • Insulation NB>BB [dB] > 40
  • Insulation BB>NB [dB] > 50
  • Return loss by channels [dB] >26
  • Input/Output impedance [Ohm] 50
  • Narrow Band Max. Power [W] 5000
  • Maximum Output Power [W] 45000
