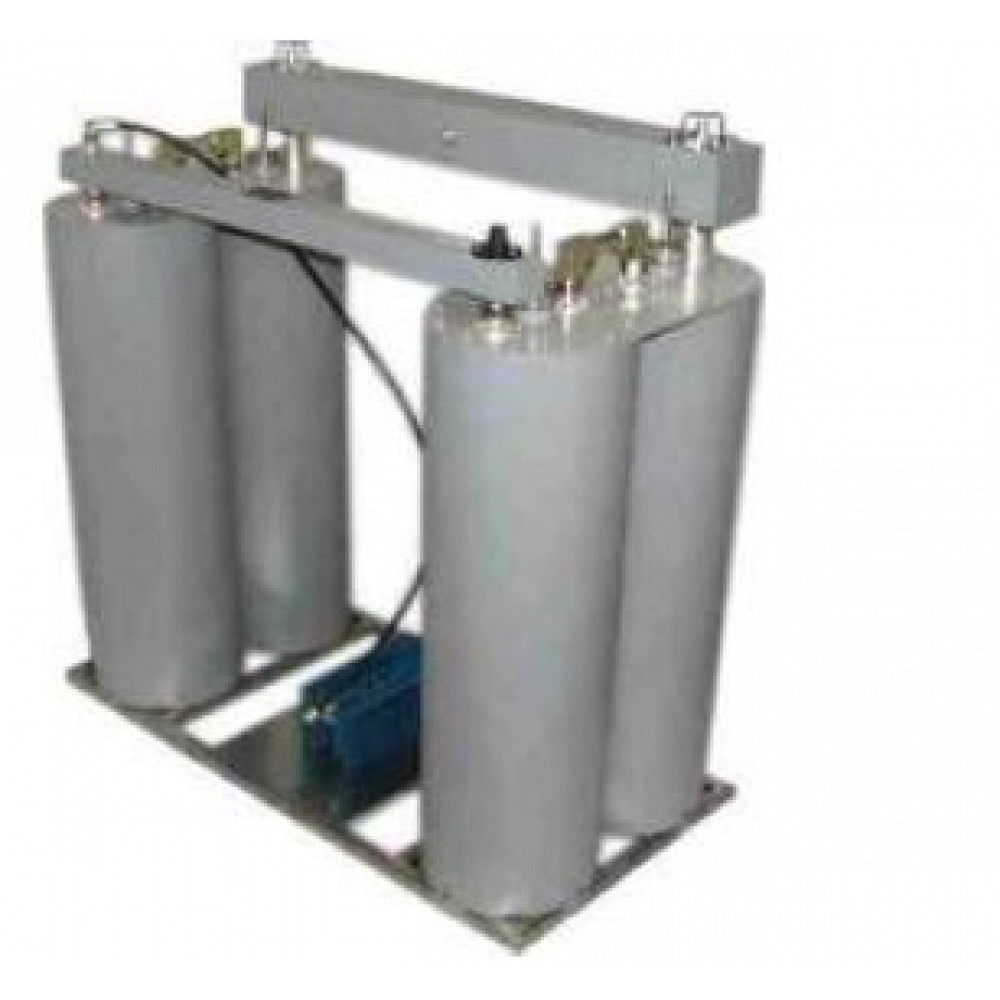

CFM2-5K+10K-DP158

5+10kW FM COMBINER BRIDGE DIPLEXER (DOUBLE CAVITY)

Features:

  • Frequency range : 87.5 ÷ 108 [MHz]
  • Filter type: Double Cavity
  • Input / Output impedance: 50 [Ohm]
  • Retuen Loss by channels :  >26
  • Max Power N.B :5000W
  • Max Output Power 15000 W
  • Insertion Loss N.B < 0.35dB
  • Insertion Loss B.B < 0.2 dB
  • Min. Distance between Ch. 1.4MHz
  • Insulation between channels : N.B  > B.B: > 40 dB
  •                                                  B.B  > N.B: > 40 dB
  • Ambient Temperature range [° C] -10 ÷ 50
  • Weight 60 kg
  • Input narrowband EIA 7/8"
  • Input broadband EIA 1 5/8"
  • Output: EIA 1 5/8"
