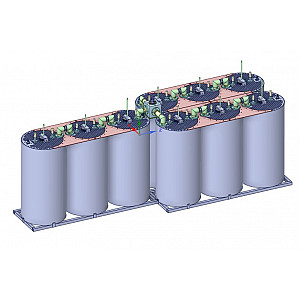

CFM2-10K/3 - 2x10 KW FM Star Point Combiner
2x10 kW Tripple Cavity Band Pass Filter Star Combiner
Features
Mechanical characteristics
- Input connectors EIA 1 5/8"
- Output connector EIA 3 1/8"
- Overall dimensions [WxDxH] [mm.] 914x1400x1135
- Weight [kg.] 190
- Temperature range [° C] -10 ÷ 50
Electrical characteristics
- Frequency range [MHz] 87.5 ÷ 108
- Insertion loss by channels [dB] on < 0.35
- Return Loss by channel [dB] > 26
- Input/Output Impedance [Ohm] 50
- Min. distance between channels [MHz] 1.2
- Insulation between channels [dB] > 30
- Maximum channel Input Power [W] 10000
- Maximum Output Power [W] 20000
