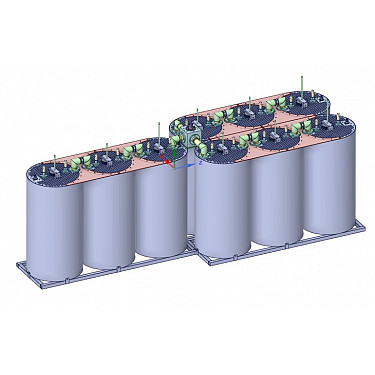

3x10kW FM Triple Cavity Star Combiner

Features

Mechanical characteristics

• Input connectors EIA 1 5/8"
• Output connector EIA 3 1/8"
• Overall dimensions [WxDxH] [mm.] 2792x914x1135
• Weight [kg.] 265
• Temperature range [° C] -10 ÷ +50

Electrical characteristics

• Frequency range [MHz] 87.5 ÷ 108
• Insertion loss by channels [dB] on < 0.45
• Return Loss by channel [dB] > 26
• Input/Output Impedance [Ohm] 50
• Min. distance between channels [MHz] 1.2
• Insulation between channels [dB] > 30
• Maximum channel Input Power [W] 10000
• Maximum Output Power [W] 30000
