Onair GPS Master Clock - Slave LED Display System

The Onair GPS Master Clock and Slave LED Display System offers a reliable and flexible time synchronization solution for large-scale clock management. Designed to handle up to 250 slave displays, this system is ideal for use in environments where precise, synchronized time is required across multiple displays. Whether through Ethernet or Wi-Fi, the master clock and slave displays communicate seamlessly within a local network.

Master Clock Features:

  • Maximum Slave Displays: Supports up to 250 slave displays, allowing for scalable clock management in large facilities.

  • GPS Synchronization: The master clock uses an internal GPS receiver to synchronize time, ensuring highly accurate timekeeping.

  • Built-in NTP Server: With its built-in Network Time Protocol (NTP) server, the master clock enables all networked devices supporting NTP (e.g., Windows, macOS, and Linux systems) to synchronize their time automatically.

  • Customizable Time & Date Format: The clock can be customized to display the desired time and date format, including time zone adjustments.

  • Communication Options: Remote control via both Ethernet and Wi-Fi for convenient management.

  • Real-Time Clock (RTC): Ensures accurate timekeeping even during power outages, maintaining time continuity.

  • High Sensitivity GPS Module: Built-in GPS module with -148dBm sensitivity for enhanced accuracy and signal acquisition.

  • Support for Multiple GPS Standards: Compatible with QZSS, DGPS, and SBAS (WAAS/EGNOS/MSAS/GAGAN) for improved reliability and anti-jamming features.

  • Temperature and Humidity Resistance: Operates in temperatures from 0°C to 60°C (32°F to 140°F) and humidity up to 90% non-condensing.

  • IPv4/IPv6 Compatibility: Ensures future-proof compatibility with modern networking standards.

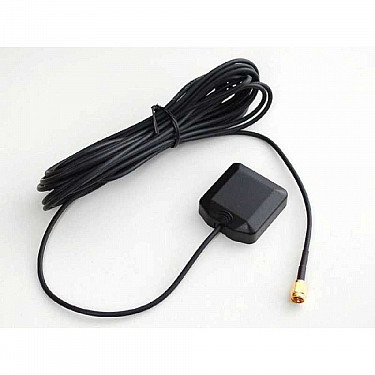

  • Power Requirements: 220V input voltage with SMA connector for GPS antenna. Supplied with a 5-meter GPS antenna.

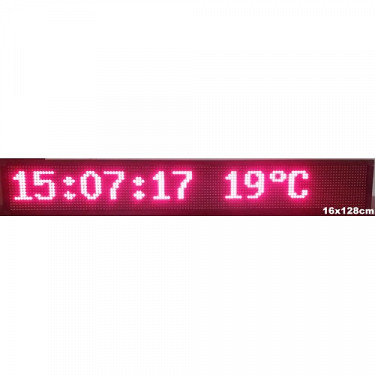

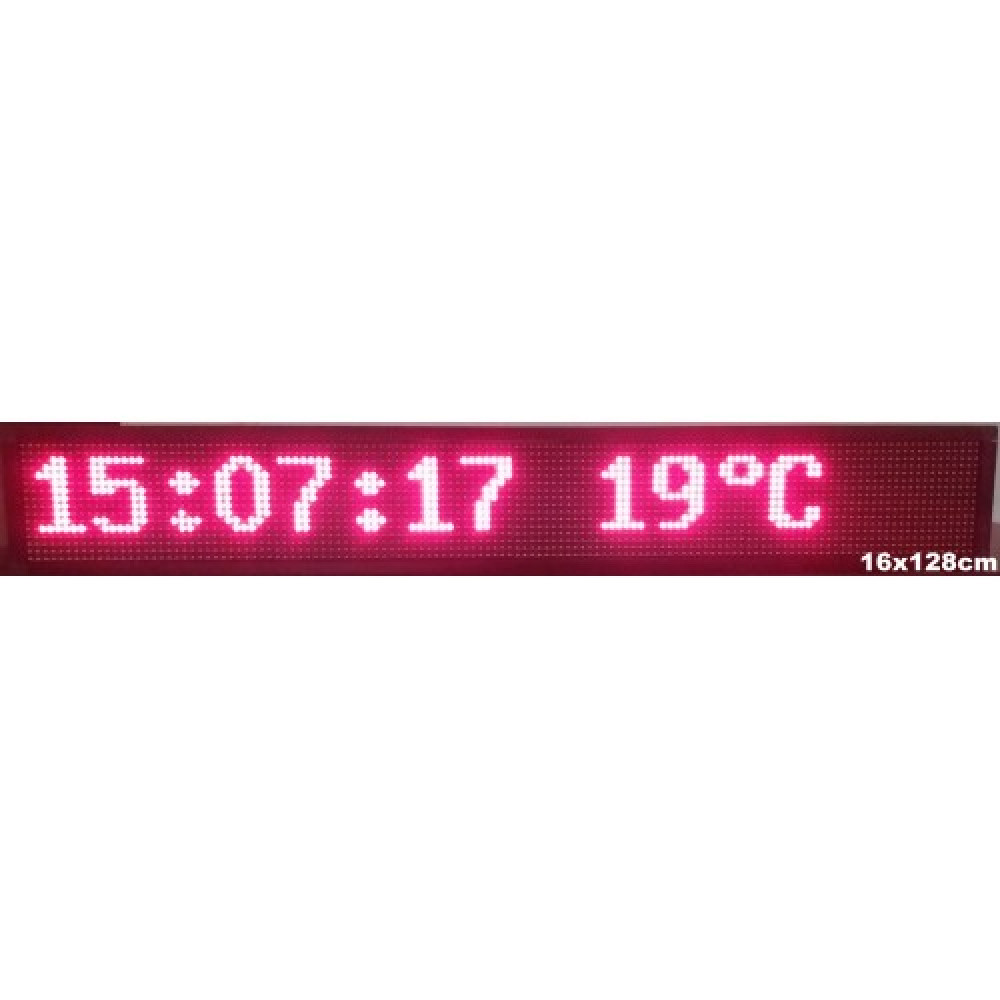

Slave Display Features:

  • Compatible with P10 (1R) HUB12 and HUB75 Displays: The system supports a variety of LED display types, including single-color and RGB color displays.

  • Max Display Control: Each slave display can control up to 15 P10 HUB75 RGB displays.

  • Standalone Operation: Slave displays can operate independently without the master clock, with the option to synchronize via any NTP server.

  • Remote Control: Slave displays can be managed remotely using the Onair Remote Control System.

  • Real-Time Clock (RTC): Like the master clock, slave displays feature an internal RTC to maintain accurate time during power or network outages.

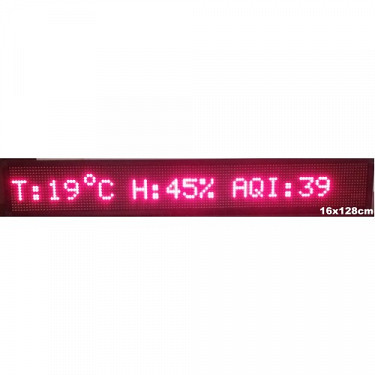

  • Content Display Options: Capable of displaying text, images, and video, giving you a broad range of possibilities for visual content.

  • Temperature and Humidity Resistance: Slave displays are built to perform in environments with temperatures from 0°C to 60°C (32°F to 140°F) and humidity levels up to 90% non-condensing.

  • IPv4/IPv6 Compatibility: Fully compatible with modern networking standards.


Applications:

  • Large-Scale Installations: Ideal for public spaces, stadiums, airports, train stations, and industrial environments where precise and synchronized time is needed across multiple locations.

  • Flexible Display Options: Suitable for any installation using P10 HUB12 and HUB75 LED displays, offering flexibility for different visual requirements.


With the Onair GPS Master Clock and Slave LED Display System, you can achieve accurate, synchronized timekeeping across all your displays, with the flexibility to manage and customize the system remotely. Whether for industrial, public, or commercial applications, this system ensures reliability, ease of use, and future-proof scalability.
