4x1.2kW FM Star Point Combiner with triple and double cavity filters

Features :

Mechanical characteristics :

• Input connectors DIN 7/16
• Output connector EIA  7/8"

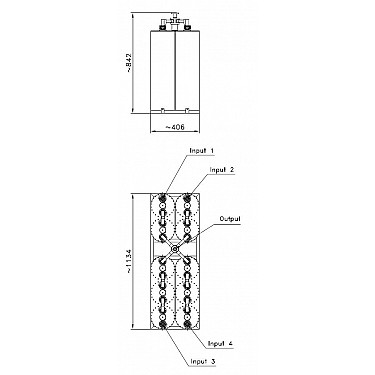

• Overall dimensions [WxDxH] [mm.] 406x842x1134
• Weight [kg.] 98
• Temperature range [° C] -10 ÷ +50

Electrical characteristics :

• Frequency range [MHz] 87.5 ÷ 108
• Insertion loss by channels Inputs 1 & 2  [dB] <0.5
• Insertion loss by channels Inputs 3 & 4  [dB] <0.7
• Return Loss by channel [dB] > 26
• Input/Output Impedance [Ohm] 50
• Min. distance between channels Inputs 1 & 2  [MHz] 2
• Min. distance between channels Inputs 3 & 4 [MHz] 1.2
• Insulation between channels [dB] > 30
• Maximum channel Input Power [W] 1200
• Maximum Output Power [W] 24800
