Audio Switch (AS-18) has been designed to select desired audio channel to output. AS-18 is also able to put desired audio channel to a buzzer and show the audio level.

AS-18 is able to have 8 input 8 output audio channels. 7 of the inputs are external and the last one is from Remote Control Board (Rpi). 7 of the outputs are directly connected to the external input channels and the one for switched channel. Any of the input channels’ analog audio can be listened via audio jack output. This is also possible from Remote Control website.

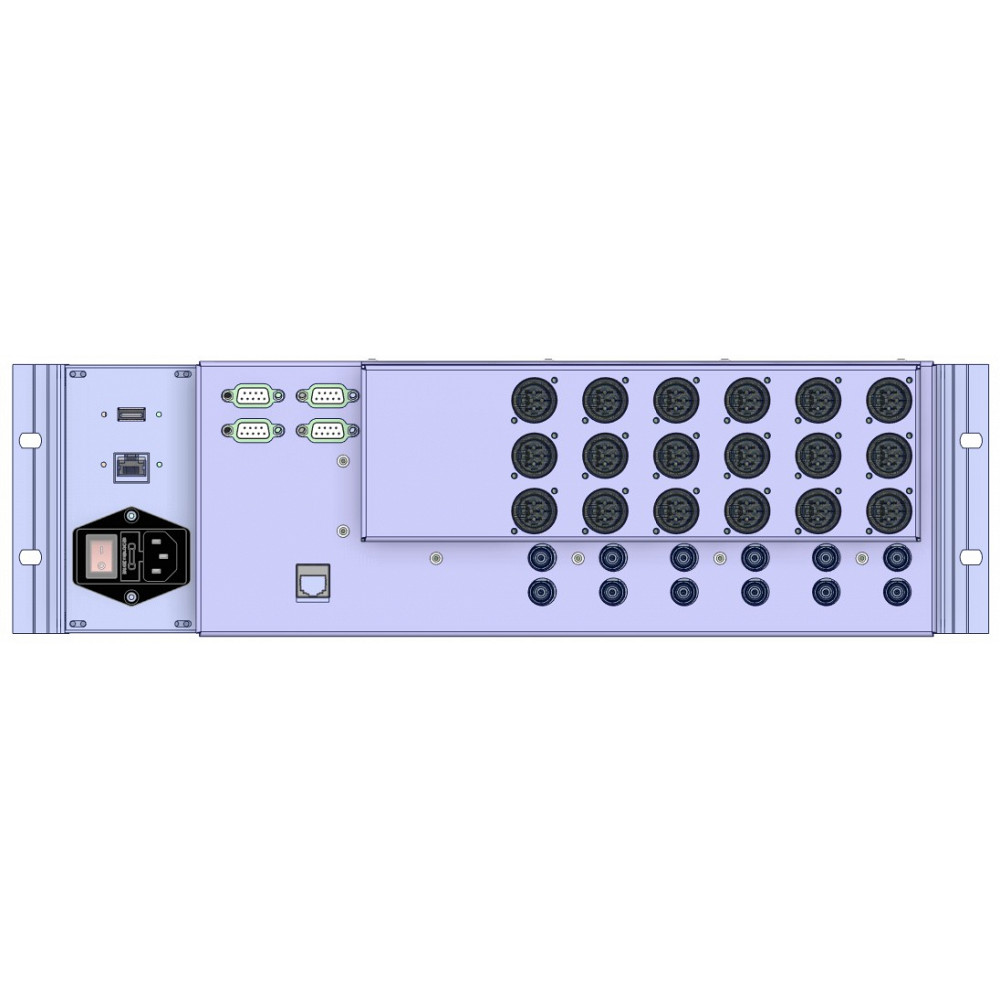

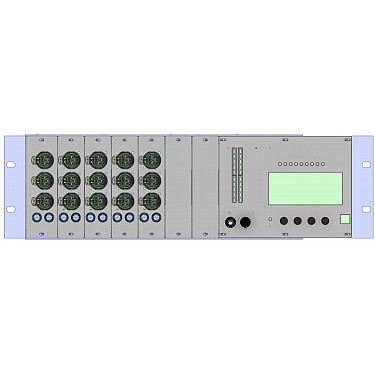

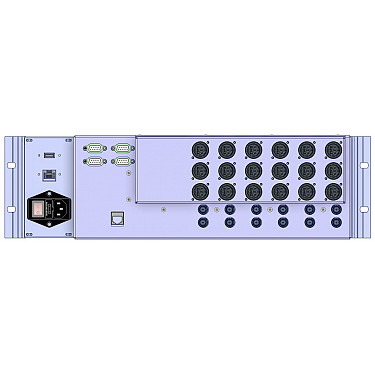

Modular design of the AS-18 allows you to expand the count of the audio input. Every audio part contains 3 XLR and 2 BNC. Main board of AS-18 have 8 audio output part while 7 input board have only one audio input part. Input boards are hot-pluggable so it is very easy to decrease or increase input count of the device.

SUM:

• 8 input 8 output audio
• Capability to listen the audios with headphone.
• VU meter
• Mute function
• Auto or manual switching
• Remote Control: Listen audio, Remote URL/IP or integrated audio player

TECHNICAL SPECS:

• Input to Redundant Output gain: -0.3 dB
• Input impedance: >10K
• Output impedance: 600*
• Operating temperature: 0 to +45 °C
• Weight: 3,5 kg
• Height: 3U
• Width: 48.5 cm (19” Rack Mountable)
• Depth: 26 cm deep including connectors
• Audio Inputs: 7 * (3 XLR + 2 BNC)
• Audio Outputs: 8 * (3 XLR + 2 BNC) 1 * 3.5m Audio Jack
• Operating Voltage: 90/250 VAC 47-63 Hz, single phase
• Dimensions: H:94mm, W:484mm, D:290mm
• Weight: 4.0 Kg
