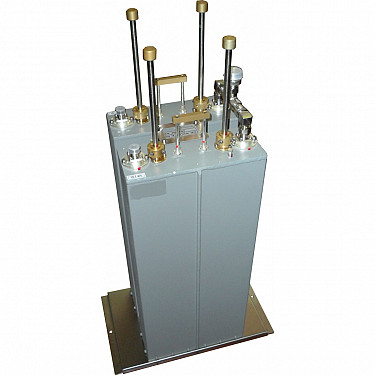

2x300 W FM Double Cavity Band Pass Filter Star Combiner

---

Features

Mechanical characteristics

• Input connectors N
• Output connector N
• Overall dimensions [WxDxH] [mm.] 246x301x773
• Weight [kg.] 14
• Temperature range [° C] -10 ÷ +50

Electrical characteristics

• Frequency range [MHz] 87.5 ÷ 108
• Insertion loss by channels [dB] < 0.85
• Return Loss by channel [dB] > 26
• Input/Output Impedance [Ohm] 50
• Min. distance between channels [MHz] 2
• Insulation between channels [dB] > 30
• Maximum channel Input Power [W] 300
• Maximum Output Power [W] 600
