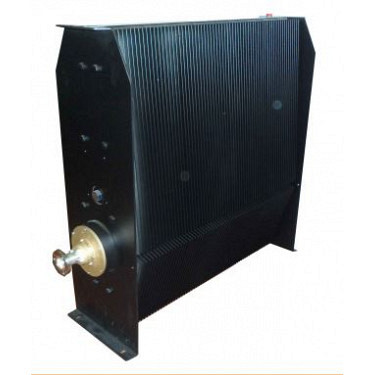

Part Number 1365-500

Mechanical Characteristics:

• Connections : EIA 1 5/8", EIA 7/8", EIA 3 1/8"
• Overall dimensions [WxDxH][mm.] :  241x820x720
• Temperature range [°C] : -10 ÷ +50
• Weight [kg.] : 75
• Cooling system: Oil Cooling

•

  Electrical Characteristics

• Frequency Range [MHz] : DC ÷ 862
• Return loss [dB] > 26
• Input Impedance [Ohm] 50
• Maximum Input Power [W] 5000 (rms)
• Blower AC power [V] N.A.
