Flanged Elbows

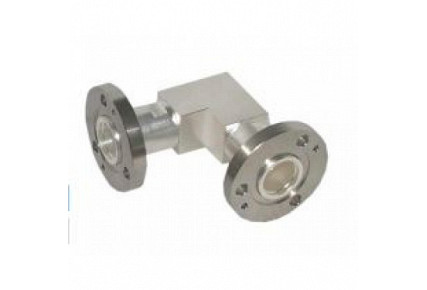

Part Number :1033 Impedance [Ohm]: 50 Connectors: EIA 7/8" Weight [kg.]: 0.5 Overall dimensions [WxDxH] [mm.] 94x58x94 ...

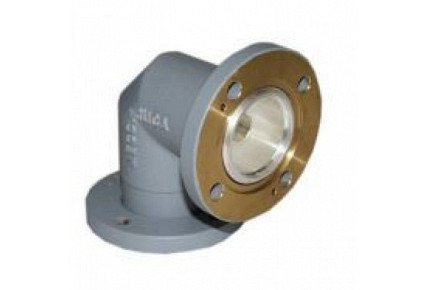

Part Number 1028 Impedance [Ohm] 50 Connectors EIA 1 5/8" Weight [kg.] 1.05 Overall dimensions [WxDxH] [mm.] 117x90x117 ...

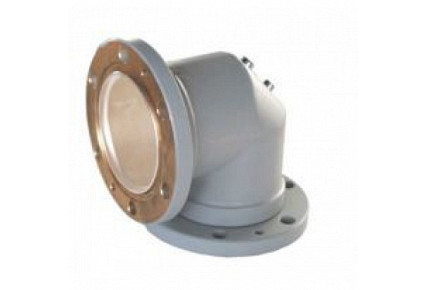

Part Number 1083 Impedance [Ohm] 50 Connectors EIA 3 1/8" Weight [kg.] 2.3 Overall dimensions [WxDxH] [mm.] 150x130x150 ...

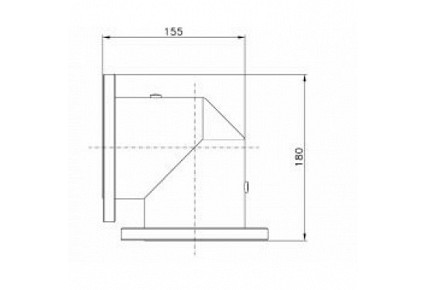

Part Number 1313 Impedance [Ohm] 50 Connectors EIA 4 1/8" Weight [kg.] 3.5 Overall dimensions [WxDxH] [mm.] 180x160x180 ...

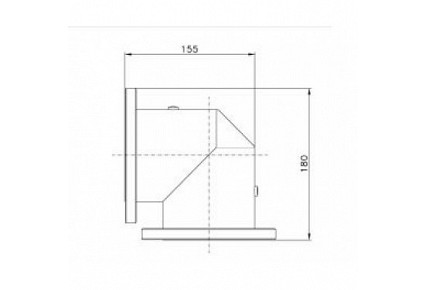

Part Number 1399 Impedance [Ohm] 50 Connectors EIA 4 1/16" Weight [kg.] 3.5 Overall dimensions [WxDxH] [mm.] 180x160x180 ...

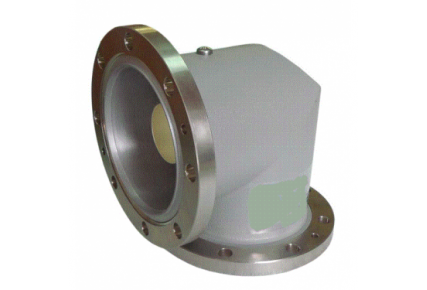

Part Number 1312 Impedance [Ohm] 50 Connectors EIA 4 1/2" Weight [kg.] 3.6 Overall dimensions [WxDxH] [mm.] 180x160x180 ...

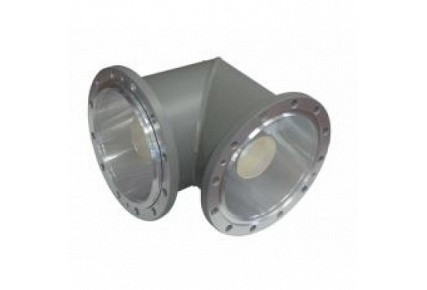

Part Number 1642 Impedance [Ohm] 50 Connectors EIA 6 1/8" Weight [kg.] 5.2 Overall dimensions [WxDxH] [mm.] 243x206.5x243 ...
