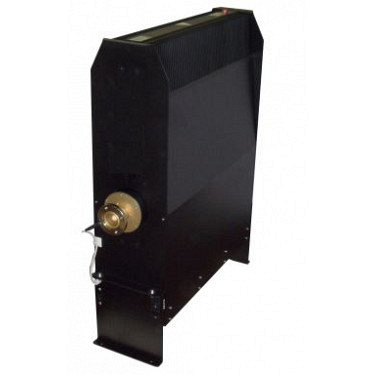

Mechanical Characteristics:

• Connections :EIA 3 1/8", 1 5/8"
• Overall dimensions [WxDxH][mm.] : 240x842x980
• Temperature range [°C] : -10 ÷ +50
• Weight [kg.] :87
• Cooling system: Oil Cooling with air forced

•

  Electrical Characteristics

• Frequency Range [MHz] : DC ÷ 862
• Return loss [dB] > 23
• Input Impedance [Ohm] 50
• Maximum Input Power [W] 10000 (rms)
• Blower AC power [V] 110 or 220
